Overview

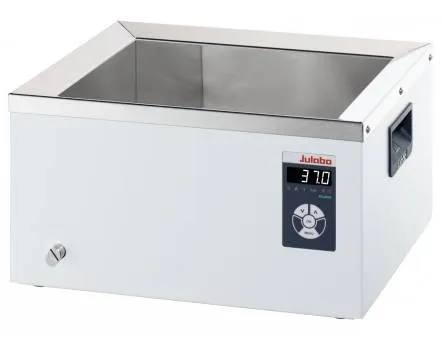

PURA water baths stand for a straightforward and safe working in the laboratory. The high-quality water baths offer a temperature stability of ± 0.15 °C 2). The working temperature range of 18 °C to 99.9 °C 1) allows a wide range of applications, such as routine laboratory work, temperature applications for samples, incubation, material testing, corrosion testing, temperature control applications of cultures as well as temperature tests of food and beverages and in the dental field. 1) with counter-cooling/bath cover (accessories) 2) with bath cover (accessories)
All models (except PURA 4) come with an integrated drain screw for quick and clean draining of the baths. PURA water baths can be used flexibly and can be easily transported through ergonomic side recessed grips. Non-slip rubber feet ensure a firm footing and more safety in the laboratory.
The units are splash-proof, feature a (membrane) keypad and temperature display (LED) for ease of use. There are no disturbing parts inside the bath so that the entire inner surface can be used to safely temperature-control even small sample containers.
Features:
- Easy operation
- Bright display
- Mains switch is protected against spray water
- Integrated protection against running dry
- Integrated drain screw (except PURA 4)
- No distracting elements in the bath
- Platform included as standard
- Integrated timer
- Non-slip rubber feet
- Ergonomic recessed grips
Lid packages available:
- Lift-up bath cover, transparent for PURA 14 Water Bath up to 99.9 °C. The bath cover is made of polycarbonat.
- Flat bath cover for PURA 14 with 6 openings, 92 mm dia.
Key Attributes
| Type | Incubated Bath |
| Incubation | Yes |
| Refrigeration | Accessory only |
| Temp Range (°C) | A 18 to 99.9 |
| Capacity (L) | 14 |
| Circulation | N/A |
| Brand | Julabo |
| MaxFlow Rate (l/min) | N/A |
| Temp Stability (°C) | ±0.15 |
| Timer | Yes |
| Alarms | Yes |
| Digital or Mechanical | Digital |
| Data connection | No |
| Tank Material | Stainless Steel |
| Sample Agitation | No |
| Media Racks Available | Yes |
| Warranty (years) | 1 |
| Weight (lb) | 18.7 |
| Width (in) | 16.5 |
| Depth (in) | 13.8 |
| Height (in) | 8.7 |
Manufacturer Specifications
|
Model |
|||||
|
Order No. |
9550504 |
9550510 |
9550514 |
9550522 |
9550530 |
|
Working temperature range (°C) |
18 to 99.9 |
||||
|
Temperature stability (°C) |
±0.15 |
||||
|
Heating capacity (kW) |
0.5 |
1.2 |
1.3 |
1.3 |
1.3 |
|
Filling volume (l) |
0.8 to 4.5 |
1.4 to 9.5 |
2 to 14 |
3.4 to 25.5 |
4.8 to 36 |
|
Usable bath opening (in.) |
4.7 x 10.6 / 5.5 |
8.7 x 10.6 / 5.5 |
13 x 10.6 / 5.5 |
21.7 x 10.6 / 7.1 |
30.3 x 10.6 / 7.1 |
|
Dimensions (W × L × H) |
8.3 x 13.8 x 8.7 in. |
12.2 x 13.8 x 8.7 in. |
16.5 x 13.8 x 8.7 in. |
25.2 x 13.8 x 10.2 in. |
33.9 x 13.8 x 10.2 in. |
|
Usable immersion depth |
5.5 in. |
5.5 in. |
5.5 in. |
7.1 in. |
7.1 in. |
|
Weight |
10.8 lbs |
15.4 lbs |
18.7 lbs |
25.4 lbs |
32 lbs |
|
Setting the resolution of the temperature display |
0.1 °C |
||||
|
Temperature display resolution |
0.1 °C |
||||
|
Ambient temperature |
5 to 40 °C |
||||
|
Heating capacity |
0.5 kW |
1.2 kW |
1.3 kW |
1.3 kW |
1.3 kW |
|
Bath tank |
Stainless steel |
||||
|
Bath cover |
accessory |
||||
|
Usable bath opening (W x L / D) |
4.7 x 10.6 / 5.5 in. |
8.7 x 10.6 / 5.5 in. |
13 x 10.6 / 5.5 in. |
21.7 x 10.6 / 7.1 in. |
30.3 x 10.6 / 7.1 in. |
|
Dimension with bathcover (W x L x H) |
8.3 x 14.6 x 14.2 in. |
12.2 x 14.6 x 14.2 in. |
16.5 x 14.6 x 14.2 in. |
25.2 x 14.6 x 15.7 in. |
33.9 x 14.6 x 15.7 in. |
|
Insert capacity for test tube racks 13 mm ø |
90 pc. |
180 pc. |
270 pc. |
450 pc. |
630 pc. |
|
Insert capacity for test tube racks 17 mm ø |
60 pc. |
120 pc. |
180 pc. |
300 pc. |
420 pc. |
|
Cooling coil |
accessory |
||||
|
Classification according to DIN12876-1 |
Classification I (NFL) |
||||
|
IP Code according to IEC 60529 |
IP 21 |
||||
|
Temperature displayTemperature display |
LED |
||||
|
Temperature settingTemperature setting |
Keypad |
||||
|
Electronic Timer hr:min |
00:01 to 99:59 |
||||
